Wattsun Dock

Wattsun Dock

Would you like to speak to one of our specialists? Call 0852006347. We are available Monday through Friday from 09:00 am to 5:00 pm.

€31902000 Watt €3859.90 incl. BTW
€28901500 Watt €3496.90 incl. BTW
€37902000 Watt €4585.90 incl. BTW

Important specs

volt

230 volt / 110 volt

The Wattsun Dock is equipped with a 230 volt or 110 volt connection and supplies pure electricity so even the most sensitive devices can be connected.

volt

2000 Watt

The continuous capacity of 1500 or 2000 Watt makes the Wattsun Dock a powerful energy supply.

volt

7800 Wh

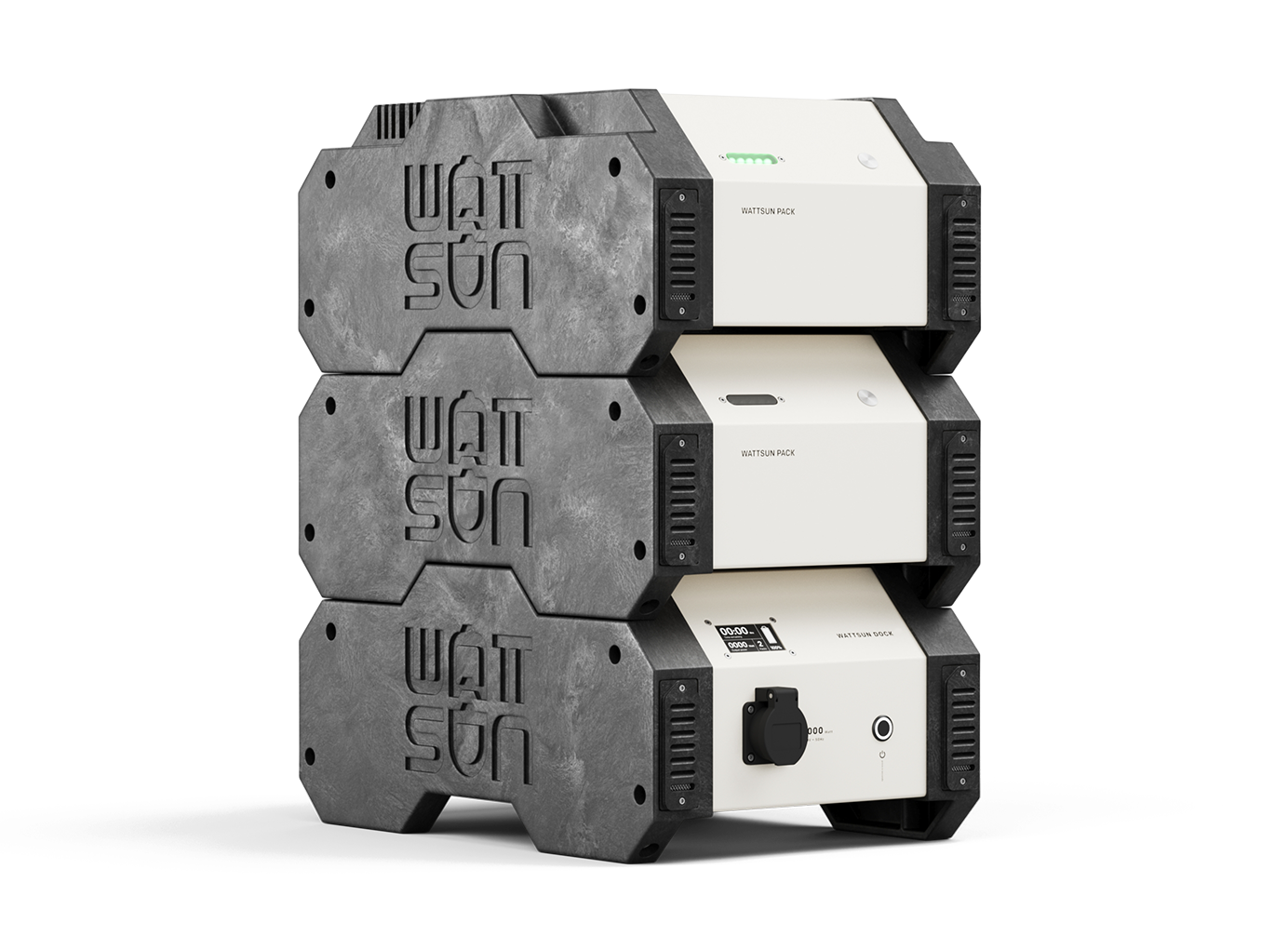

The stackable battery capacity is 7800 Wh. The Dock has a 1400 Wh capacity and a pack has 1600 Wh. Stack up to four packs in total. A sufficient energy supply you can enjoy without a care.

Get to know the Wattsun Dock

Oled display

In a blink of an eye, you can find all the information you need on the OLED screen fitted at
the front of the Wattsun. For example: batterystatus, current consumption (in Watts) and battery life in hours and minutes.



To save energy the display shuts itself off after two minutes. Simply press the power button for 1 second and the display turns back on.

Technische gegevens Dock

Wattsun Dock 2000
Wattsun Dock 1500
Voltage
220 - 240 Volt
220 - 240 Volt
Frequency
50 Hz
50 Hz
Continious power
2000 Watt
1500 Watt
Peak power
~2300 Watt 60 min.
~1730 Watt 60 Sec
Startup peak
~3500 Watt 3 sec
~2600 Watt 3 sec
Weight
17.4 kg
17.2 kg
Measurements
51 x 34 x 23 cm
51 x 34 x 23 cm
Cell technology
Lithium-Ion
Lithium-Ion
Brand cell technology
Panasonic
Panasonic
Battery capacity
1400 Wh
1400 Wh
Aantal cycli
>600
>600
Nominal voltage
51,8 Vdc
51,8 Vdc
Charging voltage
58,8 Vdc
58,8 Vdc
Load capacity
360 Watt (6A)
360 Watt (6A)
Charging time
4,5 hours
4,5 hours
Cooling
Active temperature and load controlled cooling system. This ensures optimal battery life.
Active temperature and load controlled cooling system. This ensures optimal battery life.
AC output protection
Short-circuit and overload protection
Short-circuit and overload protection
Temperature protection
Over and under temperature protection
Over and under temperature protection
Safety standard
EN 60950-01
EN 60950-01

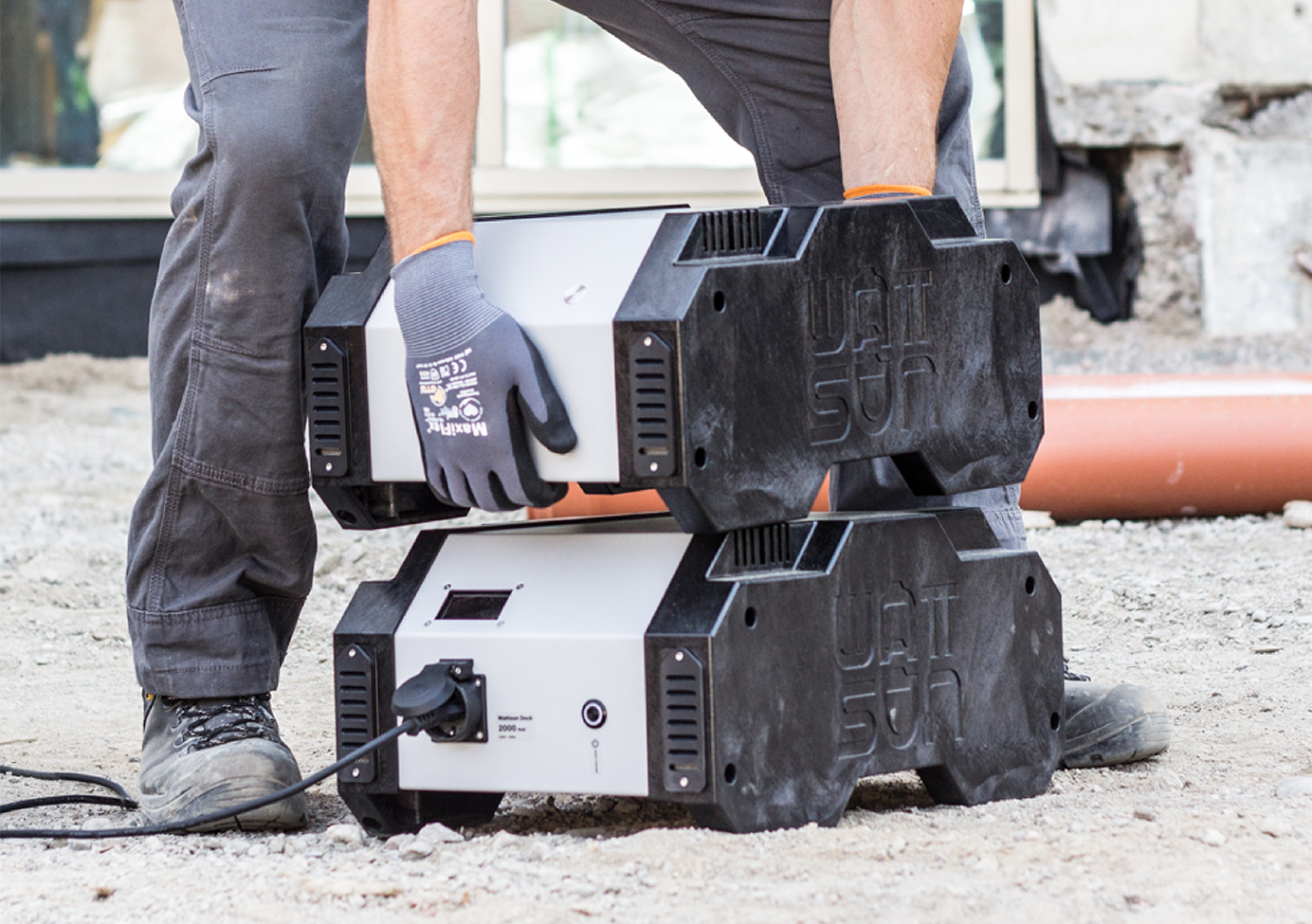

User friendliness

The Wattsun is extremely user-friendly. It’s intuitive design and simple controls make it
possible for everyone, even without technical knowledge, to create their own power outlet.


The shape is designed in a wat so that user can immediately see that the modules are
stackable. It does not matter how you stack the modules, one way or another, it always
works. The charge and discharge programme is automated in such a manner that the user
does not have to think about this process at all.
